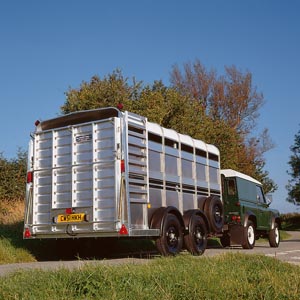

Ifor Williams TA510


The TA510 range offers substantial high specification trailers, designed for those who require the maximum volume and gross weight available.

Body lengths of 10', 12' and 14' are available, with height options of 6' and 7'. The 7' versions, with optional centre partition fitted, allow two 16.2hh horses to be transported*. All trailers have a maximum gross weight of 3500kg; payload varies between 2010kg and 2550kg depending on size and specification. All sizes are available with either the standard ramp, combination ramp doors or with the EasyLoad™ ramp and folding deck system.

TA510 trailers are fitted with a twin axle beam (tri-axle option on 14' model), leaf sprung suspension, galvanized steel chassis, aluminium side panels, heat reflecting roof, and grip-faced aluminium planking covered rear ramp.

These trailers also feature aluminium ramp gates, pressure treated timber planking with slip resistant aluminium treadplate flooring, receiver brackets for the optional cross divisions, side ventilation flaps and front access door.

High Ramp Model
Fold-up aluminium treadplate sheep deck system with ramp and provision for stowage of deck supports and rear barrier inside the trailer

Low Ramp Model
Fixed-Panel ramp

Standard Equipment
Side vents and flaps
Split front access door
Rear ramp assistor
Aluminium ramp gates
Provision for carrying cross divisions and ramp gate extensions
Beam axle system with sealed-for-life unitized wheel bearings
Interior light
Security marking and registration with The Equipment Register (TER)
50mm locking ball coupling
Spare wheel and carrier

Optional Extras
Large and small cross divisions
Ramp gate extensions
Centre partition, breast bars (7' headroom models only)
GRP wind deflector

Ifor Williams trailers
Specifications Max. Gross Weight Internal Length Internal Width Headroom Tyres
TA510 10' 6' H/R 3500kg 3040mm (119 ½") 1780mm (70") 1830mm (72") 175/75R16C
TA510 10' 6' H/R 3500kg 3040mm (119 ½") 1780mm (70") 1830mm (72") 6.50R16C
TA510 10' 7' H/R 3500kg 3040mm (119 ½") 1780mm (70") 2130mm (84") 175/75R16C
TA510 10' 7' H/R 3500kg 3040mm (119 ½") 1780mm (70") 2130mm (84") 6.50R16C
TA510 12' 6' H/R 3500kg 3660mm (144") 1780mm (70") 1830mm (72") 175/75R16C
TA510 12' 6' H/R 3500kg 3660mm (144") 1780mm (70") 1830mm (72") 6.50R16C
TA510 12' 7' H/R 3500kg 3660mm (144") 1780mm (70") 2130mm (84") 175/75R16C
TA510 12' 7' H/R 3500kg 3660mm (144") 1780mm (70") 2130mm (84") 6.50R16C
TA510 14' tri-axle 6' H/R 3500kg 4270mm (168") 1780mm (70") 1830mm (72") 175/75R16C
TA510 14' 6' H/R 3500kg 4270mm (168") 1780mm (70") 1830mm (72") 6.50R16C
TA510 14' tri-axle 7' H/R 3500kg 4270mm (168") 1780mm (70") 2130mm (84") 175/75R16C
TA510 14' 7' H/R 3500kg 4270mm (168") 1780mm (70") 2130mm (84") 6.50R16C

Dimensions & weights are given as a guide only. Ifor Williams Trailers and Whitehall Trailers have a policy of continuous development. We reserve the right, therefore, to alter specifications without notice.
