Our Tippers are available in three sizes.
Standard Equipment (Example TT126)
Galvanized steel chassis and framework
Removable galvanized steel dropsides, headboard & ladder rack
Resin-coated high density plywood platform covered with aluminium plate
Tipper ram operated by an electro-hydraulic motor powered by an on-board heavy duty 12v battery. Key operated isolating switch. Manually operated back-up system
185/60R12 tyres
Ifor Williams beam axle system with sealed-for-life unitized wheel bearings and auto-reverse brakes
Heavy duty jockey wheel
Full regulation lighting
Laser cut security code in A-frame
Free registration with The Equipment Register (TER)
Spare wheel & carrier
Optional Extras (Example TT126)
Weldmesh panelled side extensions
6' long perforated steel loading skids with prop stands
8' long perforated steel loading skids with prop stands
Electric Winch
Eye couplings (30mm, 40mm, 50mm, 76mm, STD & NATO) |
 |
TT85
| Platform Length |
2.47m (97 1/4") |
| Platform Width |
1.46m (57 1/2") |
| Loading Height |
0.82m (32") |
| Unladen Weight |
680Kg |
| Max. Gross Weight |
2700Kg |
|
TT105
| Platform Length |
3.01m (118 1/2") |
| Platform Width |
1.68m (66") |
| Loading Height |
0.73m (29") |
| Unladen Weight |
960Kg |
| Max. Gross Weight |
3500Kg |
|
TT126

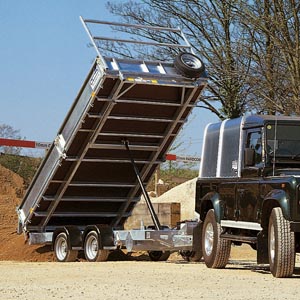

(shown in image)
| Platform Length |
3.62m (142 1/2") |
| Platform Width |
1.98m (78") |
| Loading Height |
0.73m (29") |
| Unladen Weight |
1150Kg |
| Max. Gross Weight |
3500Kg |
|
|
Dimensions & weights are given as a guide only. Ifor Williams Trailers and Whitehall Trailers have a policy of continuous development. We reserve the right, therefore, to alter specifications without notice.
